    Commercial Garage Doors

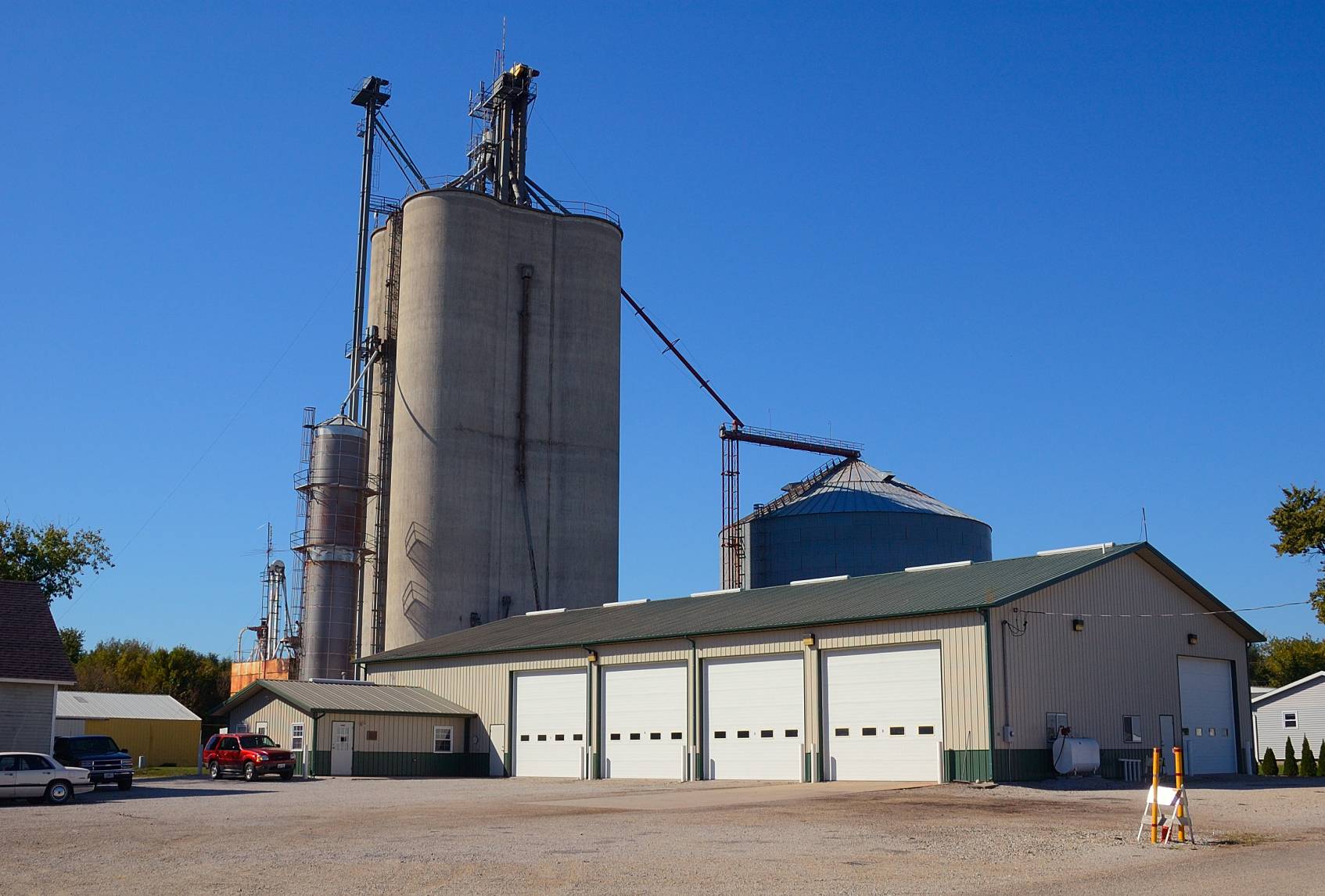

    Insulated Sandwich Doors

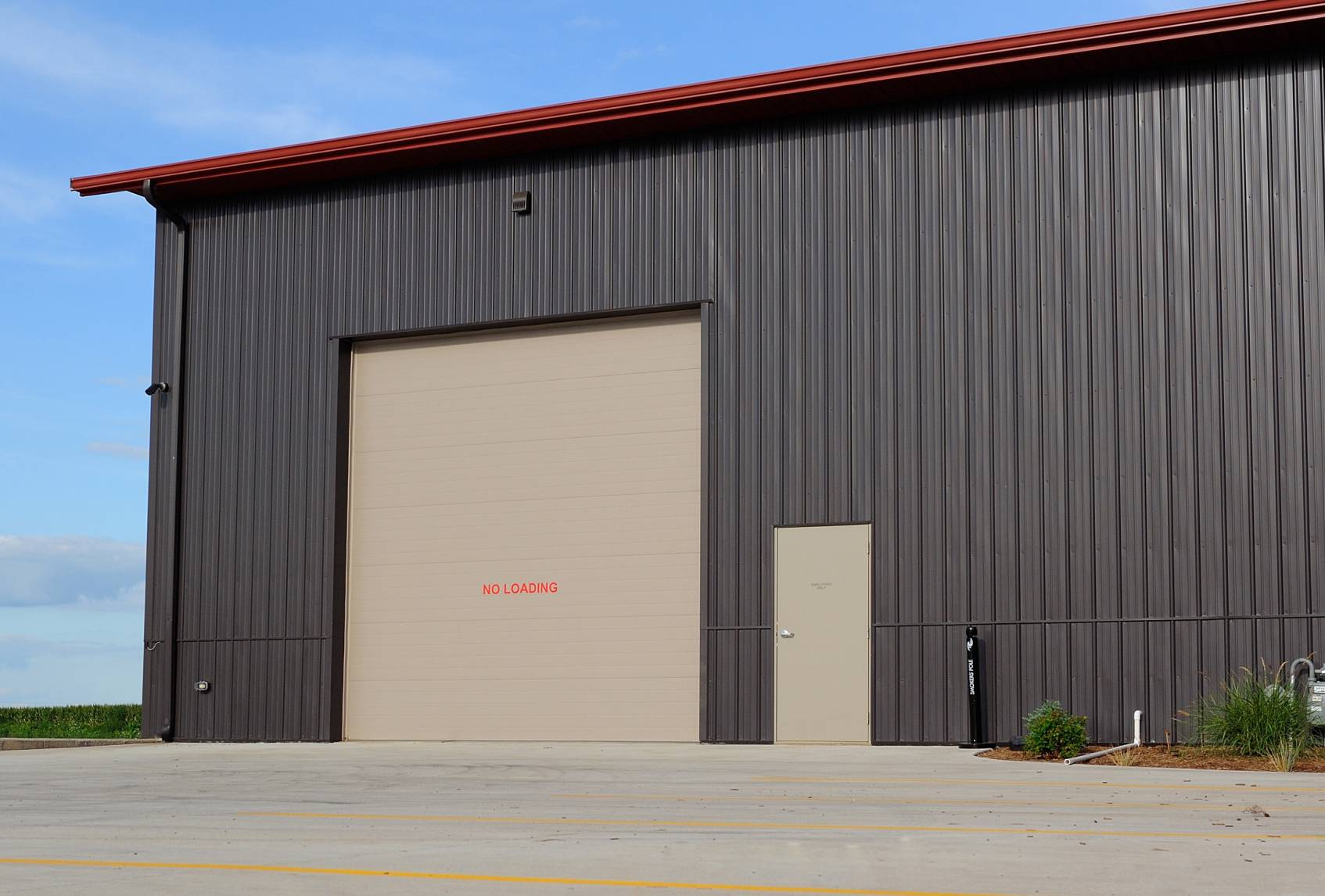

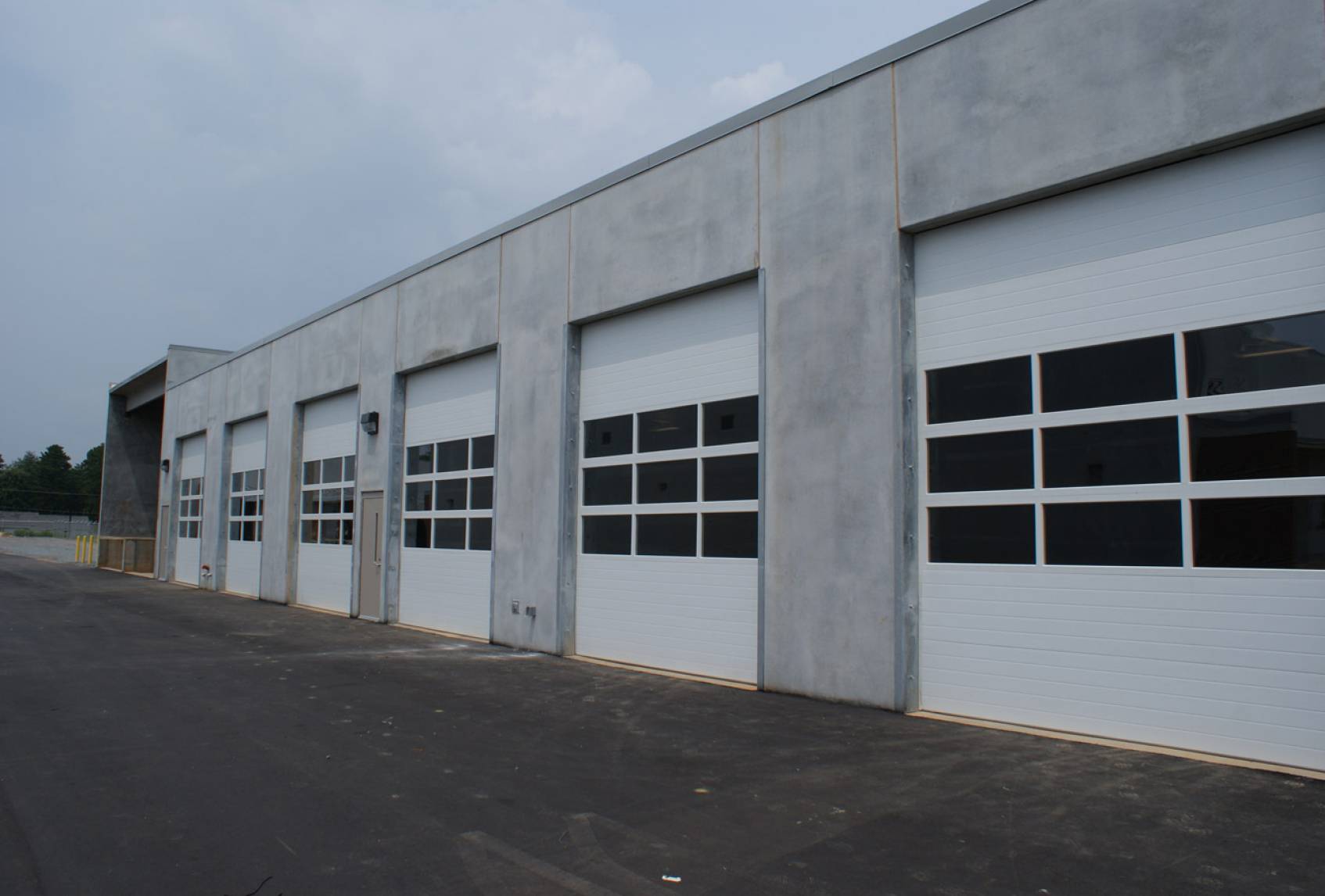

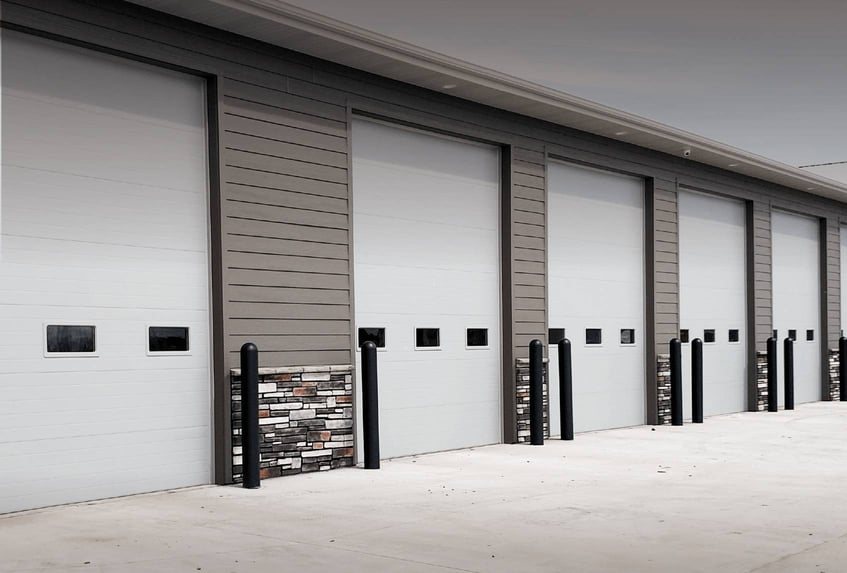

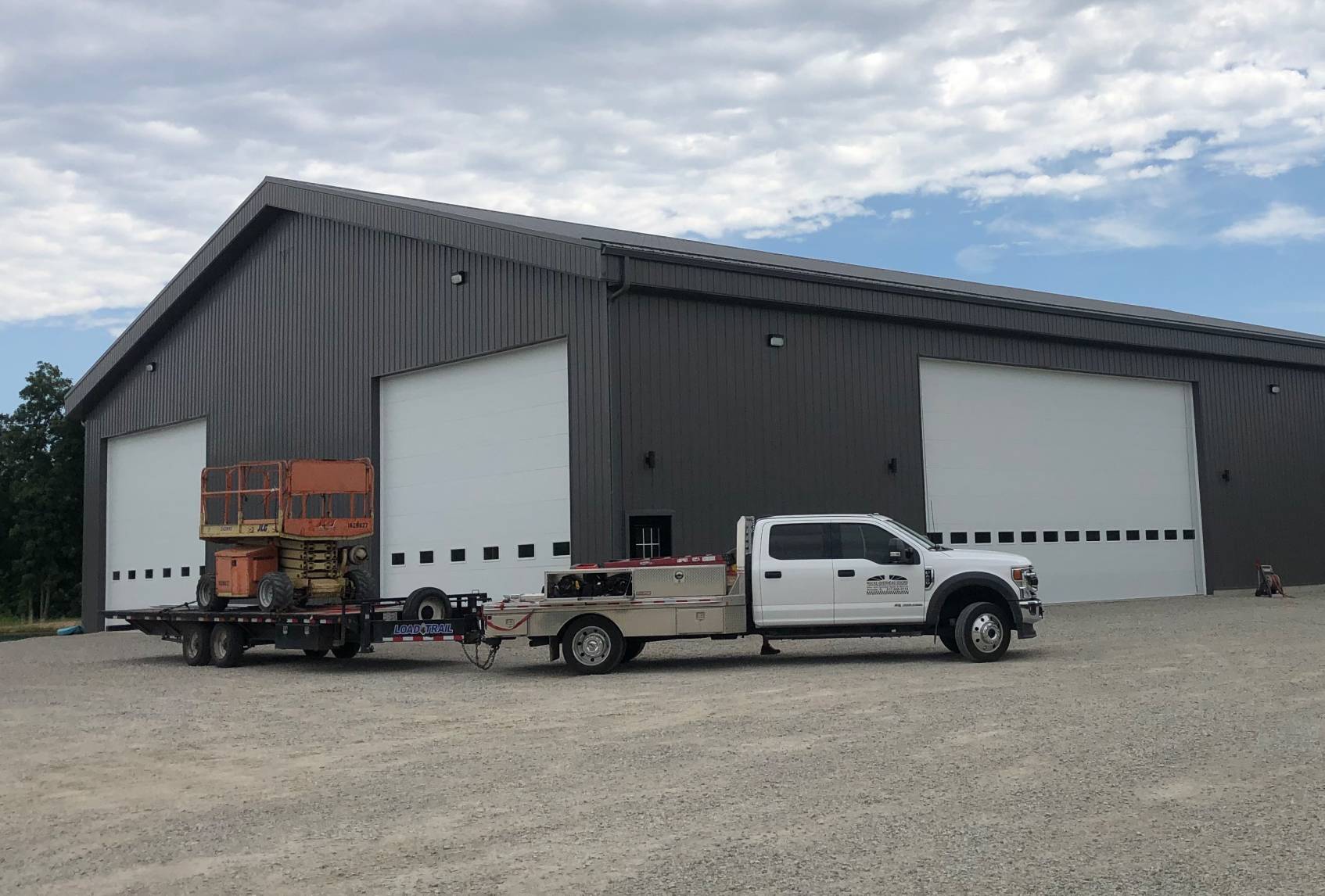

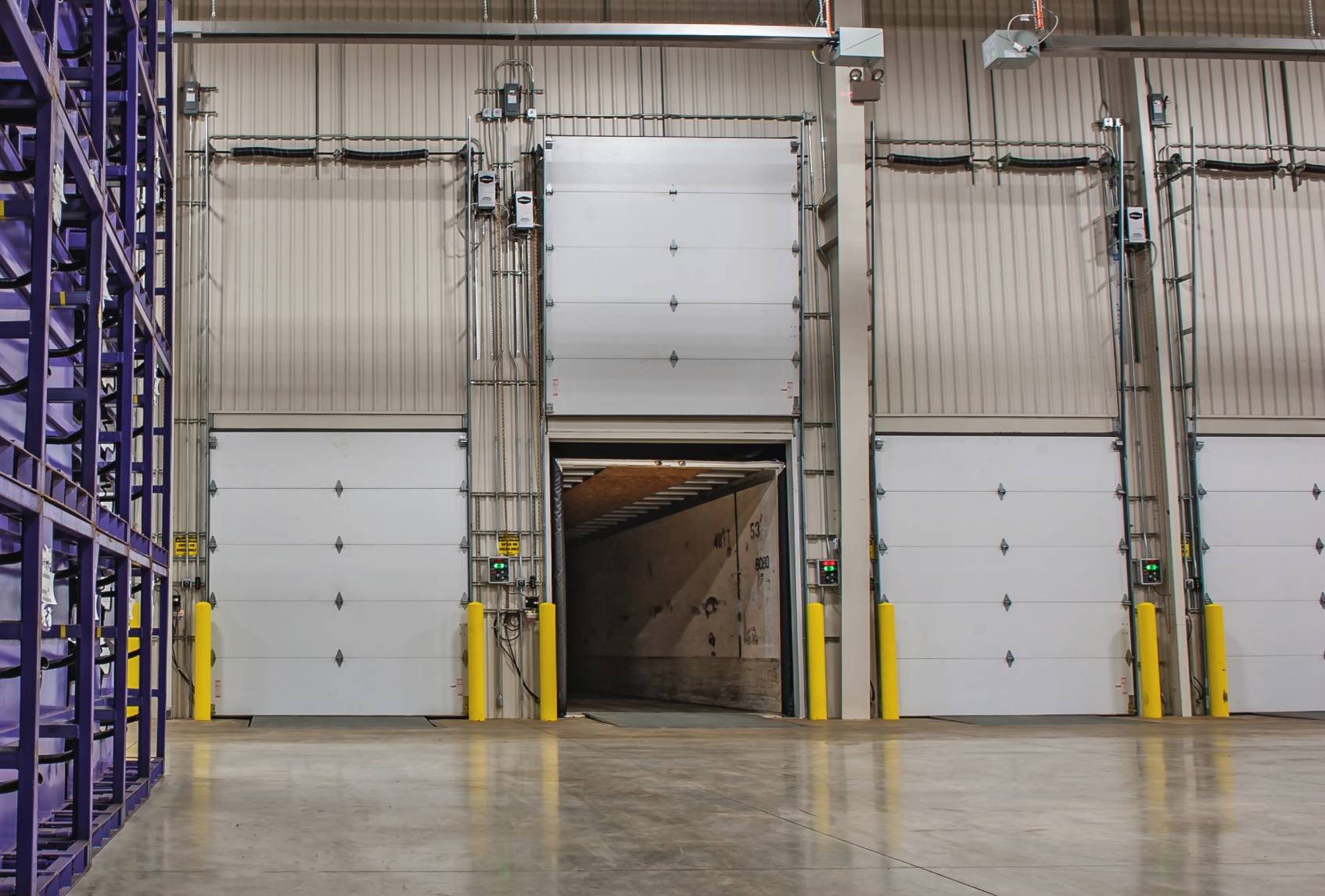

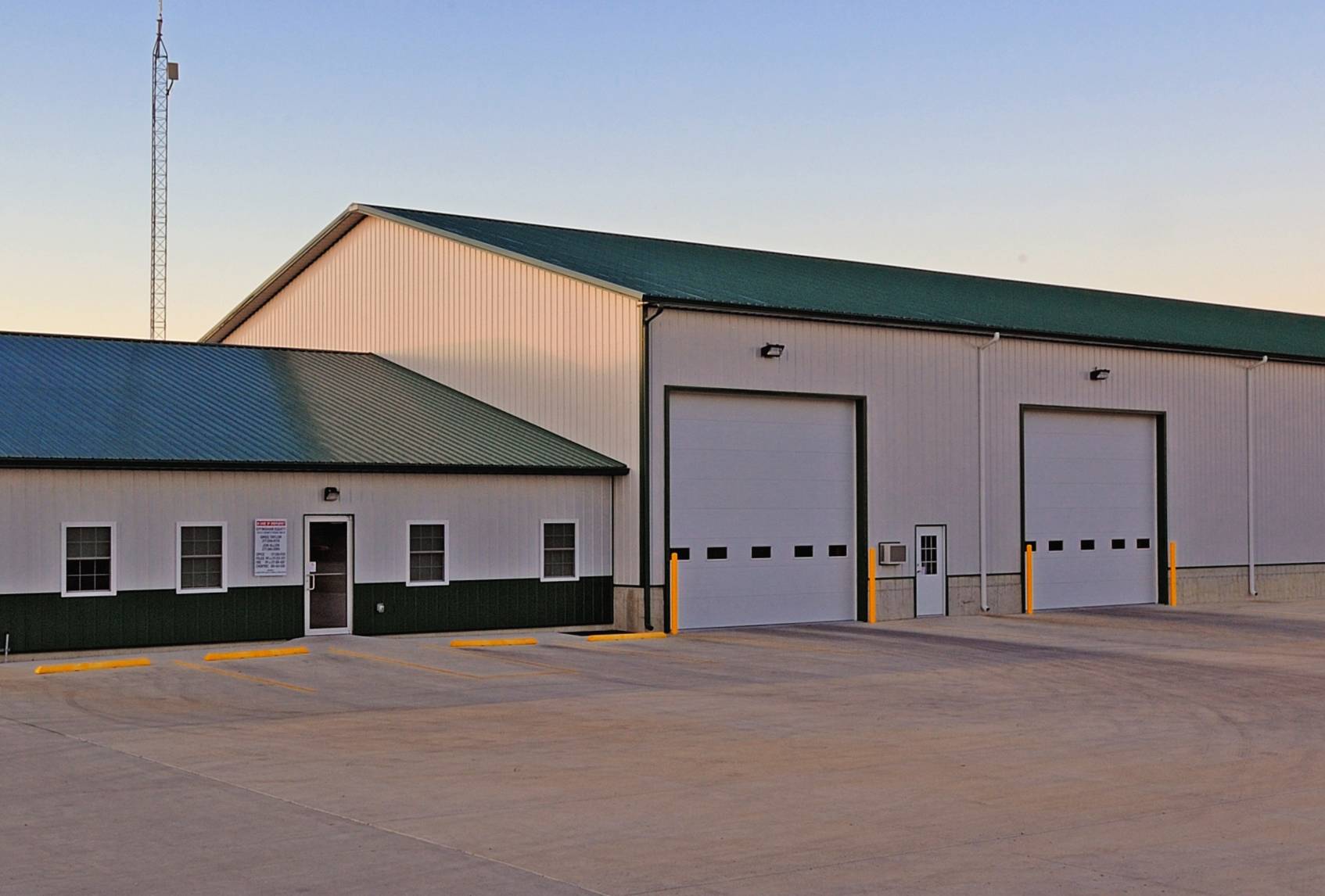

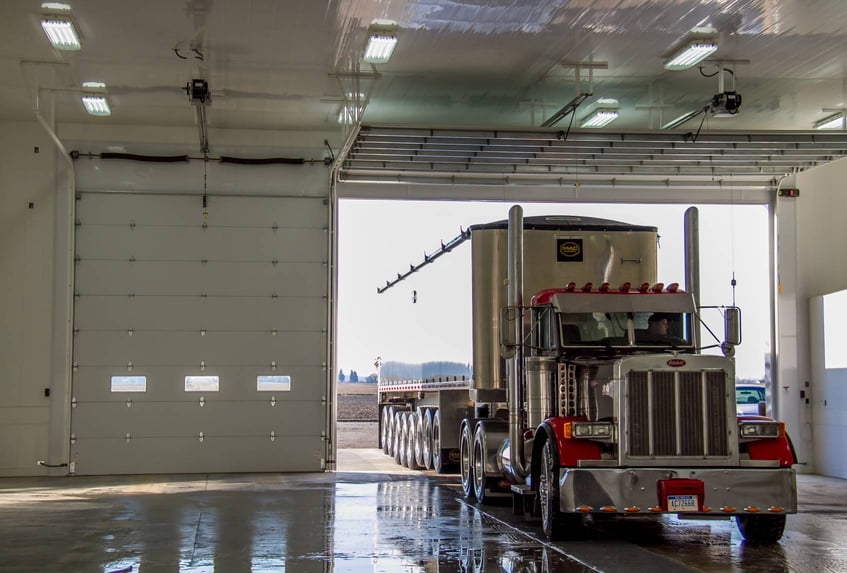

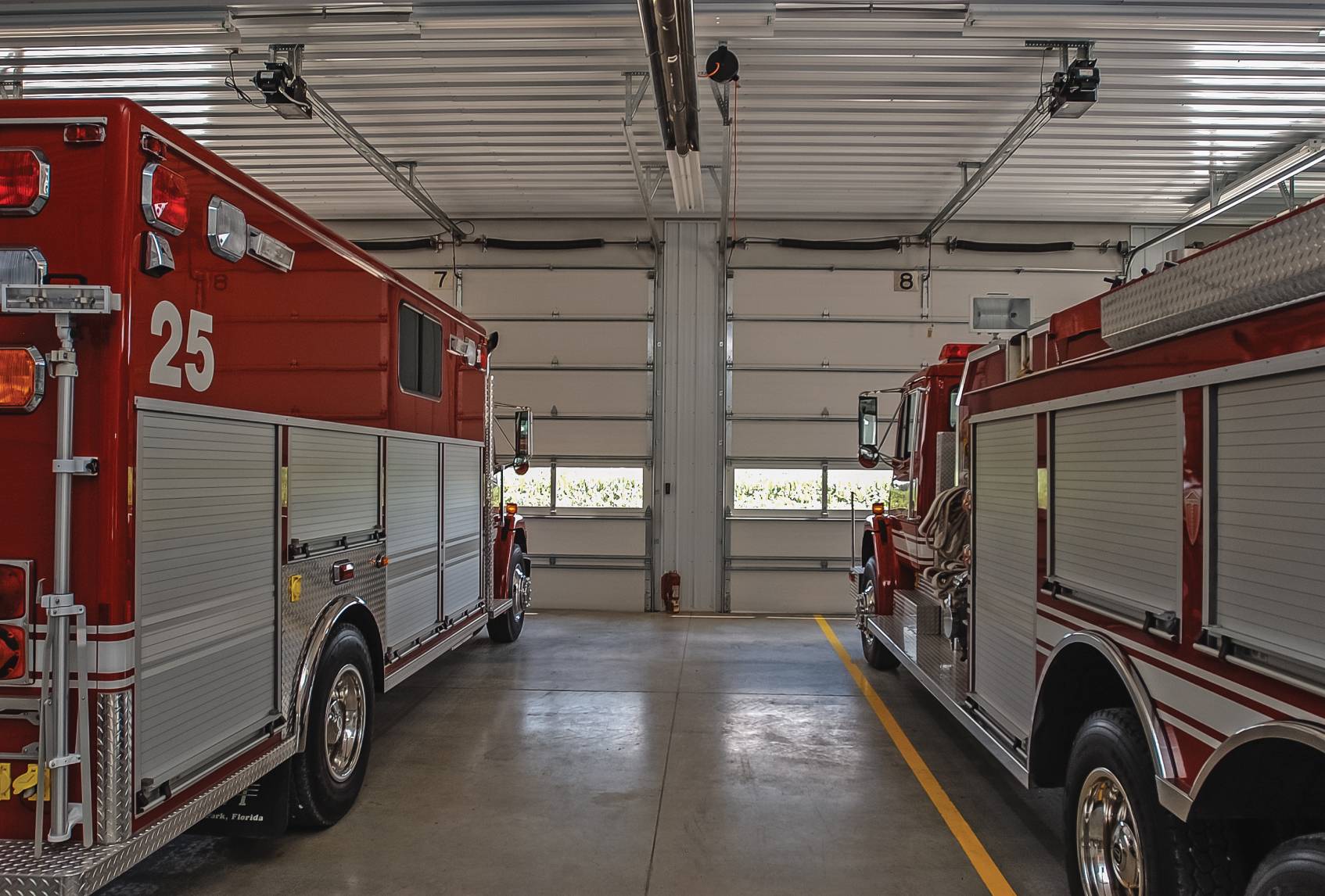

    Regardless of your specific application, C.H.I. offers a premium insulated door product guaranteed to deliver years of dependable operation. Our micro-grooved sandwich models are constructed in a variety of gauges and are available in both polyurethane and polystyrene insulation options for those applications that demand the best in thermal efficiency and value. And, if you’re looking to enhance your buildings aesthetics, our sandwich doors are available powder-coated in over 182 different colors!

    MODEL SELECTION CHART

    Model Insulation R-Value Section Gauge & Thickness Max Size Spec Sheets
    3206 Polyurethane 13.68 28 gauge front/28 gauge back
    1-1/2” Thick Section
    18’2” x 16’0” 3-Part Spec
    Spec Data Sheet
    Section Drawing
    BIM Objects
    Product Flyer
    3212 Polyurethane 17.54 20 gauge front / 27 gauge back
    2” Thick Section
    24’2” x 16’0” 3-Part Spec
    Spec Data Sheet
    Section Drawing
    BIM Objects
    Product Flyer
    3216 Polyurethane 17.54 26 gauge front / 27 gauge back
    2” Thick Section
    32’2” x 20’0” 3-Part Spec
    Spec Data Sheet
    Section Drawing
    BIM Objects
    Product Flyer
    3236 Polyurethane 26.89 26 gauge front / 27 gauge back
    3” Thick Section
    40’2” x 20’0” Spec Data Sheet
    Section Drawing
    BIM Objects
    Product Flyer
    3285 1-13/16” Polystyrene 10.29 26 gauge front / 27 gauge back
    2” Thick Section
    28’2” x 20’0” 3-Part Spec
    Spec Data Sheet
    Section Drawing
    BIM Objects
    Product Flyer

    RESOURCES

    Section Resources

    Door Width / Panels Across Chart
    Door Height / Numbers of Sections Chart

    Track Resources

    Standard Lift Doors | dwg | pdf
    Low Headroom | dwg  Front Mount Low Headroom | pdf  Rear Mount Low Headroom | pdf
    High Lift
    Doors dwg | pdf
    Vertical Lift Doors dwg | pdf
    Incline dwg | pdf
    Reverse Angle Mounted Track | pdf
    Bracket Mounted Track | pdf
    Clip Angle Mounted Track | pdf
    Continuous Angle Mounted Track | pdf

    CONNECT WITH AN ARCHITECTURAL CONSULTANT

    Whether you’re an Architect, Specifier, Engineer or End User our Architectural Consultant Team is prepared & ready to be a solution provider to your project. Ensuring that the correct product is specified or detailed can save time, money and increase occupants’ safety.

    Contact one of our team members today.
